CIM-5000 Card dispenser with encoder and 2 security exchange cartridges

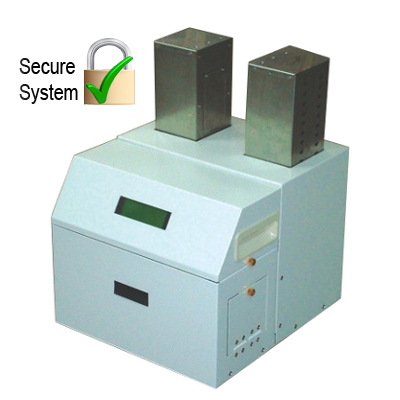

CIM-5000 Card dispenser

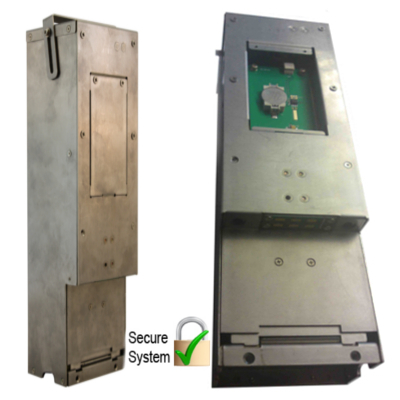

The CIM-5000 Card dispenser with reader/encoder for magnetic, chip, RFID cards and 2 exchange security cartridges for up to 1.000 cards. This model was specially developed for value cards like prepaid or gift cards. The security cartridges has their own ID plus memory and can´t be opened manually (without breaking the card magazine).
The refilling of the card magazine takes place over the CCM-5000 and the dispensing through the CIM-5000. Both cant be done manually. So a lossless transportation and storage of the value cards is ensured.
The device allows an intelligent monitoring of all card processes through the build in sensors. They give a warning at low card level or when the magazines are empty. Furhter cards can be returned into the device and stored in a speparate box.
- The CIM-5000 card dispsenser with encoder for up to 1.000 cards.
- The dispenser can read/encode magnetic, chip and RFID cards.
- With 2 selectably controllable card magazines, allows dispensing of 2 card types.
- Card can be returned into the device and stored in a speparate box.
- With automatic baudrate change (9.600-19.200 bps) over interface.
- With low-card, card empty warning and capture card box full.
- The special clutch system ensures single card output, no card jam.
- Card thickness is adjustable between 0,76-1,0mm.
- Available with RS-232.
| Description | Note | |
|---|---|---|
| Model/Typ | CIM-5000 card dispenser | |
| Card magazine | Exchange cartridges | Security system |
| Card transportation | Roller | |
| Card thickness | 0,76 – 1,0 mm | |
| Card size | ISO 7810
85,725 x 53,975 mm |
|
| Magnetic cards | 3 Spuren reading + encoding
HiCo+LoCo, ISO 7810-13 |
|
| Chip cards | reading + encoding
ISO 7816 |
|
| RFIC cards | reading + encoding
ISO 14443A Mifare |
contactless chip cards |
| Card magazine capacity | 2 x 200, 2 x 300 , 2 x 4002 x 500, 2 x 750 | cards |
| Interface | RS-232 | |
| Card empty sensor | Yes | |
| Low card warning sensor | 20, 40, 60, 80, 100 cards | |
| Card capture function | Yes | |
| Capture card box | Yes (30 Karten ) | |
| Sensor capture card box | Yes | |
| Further Options | Card Drop Version
Longlife magnetic head 3 Mio. passes Bezel or Shutter Housing Version |
|
| Dimensions | Encoding magnetic, chip, RFIC
2 x 200 cards 280 x 343 x 300 mm 2 x 300 cards 280 x 343 x 395 mm 2 x 500 cards 280 x 343 x 545 mm 2 x 750 cards 280 x 343 x 708 mm Only RFID encoding 2 x 200 cards 280 x 281 x 300 mm 2 x 300 cards 280 x 281 x 395 mm 2 x 500 cards 280 x 281 x 545 mm 2 x 750 cards 280 x 281 x 708 mm |
|
| Power consumption | DC 24V (+-5%) | |
