KYT-2300 Card dispenser for wrapped cards

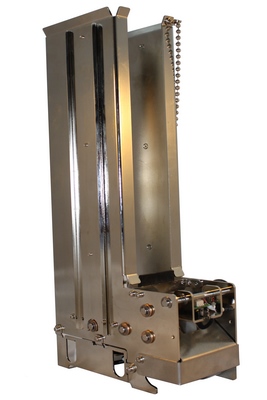

KYT-2300 Card dispenser

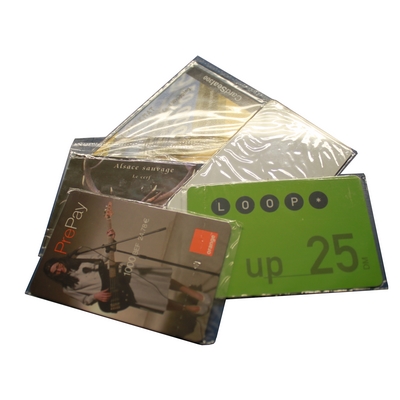

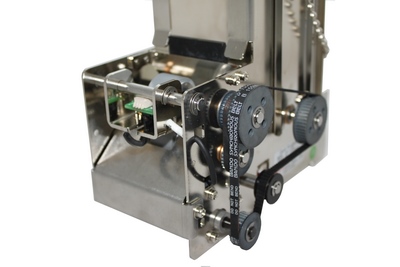

The KYT-2300 Card dispenser for wrapped cards is perfectly suitable for vending machines. The device has a unique cltuch system which ensures the single card dispensing and prevents card jam. It´s design is very compact, with low-maintenance and easy to use. The dispenser can be filled with up to 300 cards (0,76 mm). Thereby the card thickness is adjustable from 0,2 – 1,0 mm, which can be done be the end user itself very easy. The dispenser can be used for standard size cards but also for a card format of up to 94 x 67 mm (incl. packing). Available with the interfaces RS-232, RS-422 or TTL.
- The KYT-2300 card dispenser for up to 300 wrapped cards.
- The device has a compact and robust design.
- Card length is adjustable from 94 x 67 mm.
- Card thickness from 0,2 – 1,0 mm adjustable.
- Available with the interfaces RS-232, RS-422 or TTL.
| Description | Note | |
|---|---|---|
| Typ | KYT-2300 Card dispenser | Wrapped cards |
| Card magazine | Stacker | |
| Card transport | Roller | |
| Card thickness | 0,22 – 1,0 mm | |
| Card size | 94 x 67 mm (incl. packing) | max. size |
| Magazine capacity | 150 cards
300 cards |
0,76 mm |
| Interface | RS-232, RS-422, TTL | |
| Card dispensing | Card slide | no bezel |
| Dimensions | 99 x 156 x 215 mm | 150 card magazine |
| Power consumption | DC 24V (+-5%) | |
