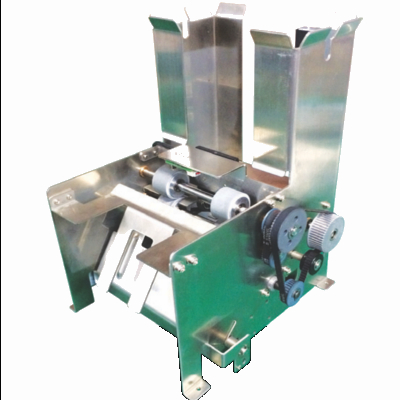

KYT-2700 Card dispenser for wrapped cards
KYT-2700 Card dispenser for wrapped cards
The KYT-2700 Card dispenser for wrapped cards is perfectly suitable for applications like vending machines. Also cards out of ISO standards can be dispensed. The card magazine can be filled with up to 300 cards. The device has a unique clutch system which prevents cards jams in the magazine and ensures the single output of every card. Further the KYT-2700 has a card detect and card capture function. The card thickness is adjustable from 0,2 – 1,0 mm, which can be done by the end user easy. The dipsneser has a compact, robust design and is easy in handling. Available with the interfaces RS-232 and TTL.
- The KYT-2700 card dispenser for up to 300 cards.

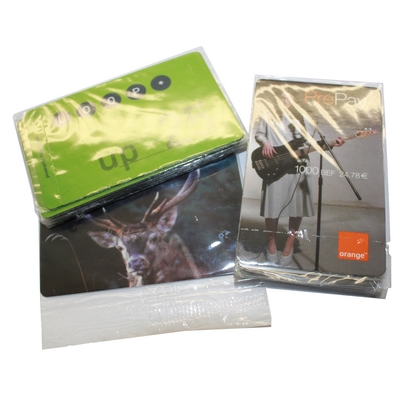

- Suitable for wrapped cards and special size cards (up to 61mm x 120mm).

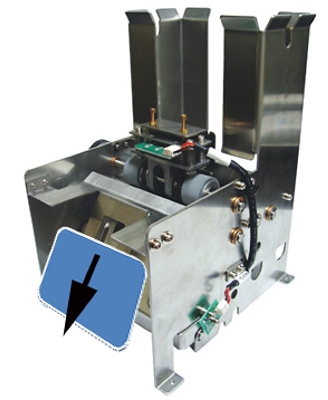

- With card detect and card capture function.
- It has a very compact and robust design with low-maintenance.
- The card length and card thickness are adjustable

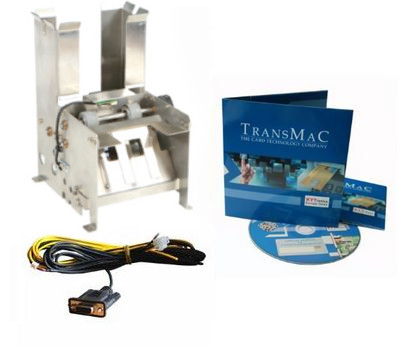

- Available with the interfaces RS-232, RS-422 or TTL.
| Description | Note | |
|---|---|---|
| Typ | KYT-2700 Card dispenser for wrapped cards | |
| Magazine type | Stacker | |
| Card transport | Roller | |
| Card thickness | 0,22 – 1,0 mm | |
| Card size | max. 61 x 120 mm | incl. packing |
| Magazine capacity | 150, 300 | Cards |
| Interface | RS-232, RS-422, TTL | |
| Card dispensing | Card slide | |
| Card capture function | Yes | |
| Dimensions | 150 cards :145 x 172 x 215 mm
300 cards :145 x 172 x 325 mm |
|
| Power consumption | DC 24 V (+-5%) |
