KYT-7300 Card reader for magnetic, chip and RFID cards
KYT-7300 Card reader
The KYT-7300 card reader for magnetic, chip and RFID cars. This compact and solid cards reader for long-life with low-maintenance for versatile applications. Either with palstic bezel or metal bezel available. With automatic card lock function, to ensure a trouble-free card process. The card can´t be removed while reading or encoding process. This series is used successful in the market since many years for applications like access control, vending machines or gaming and casino. Available with the interfaces RS-232, TTL or USB.
- The KYT-7300 insertion card reader for magnetic, chip and RFID.
- For ISO 7811 magnetic card, HiCo and LoCo for all 3 track reading
- For ISO 7816 chip cards, landing contacts for scratch free chip.
- For ISO 14443 RFID cards Mifare or compatible.

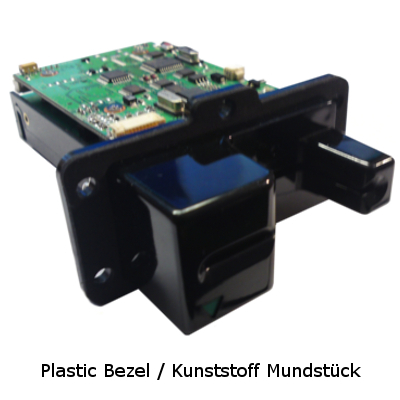

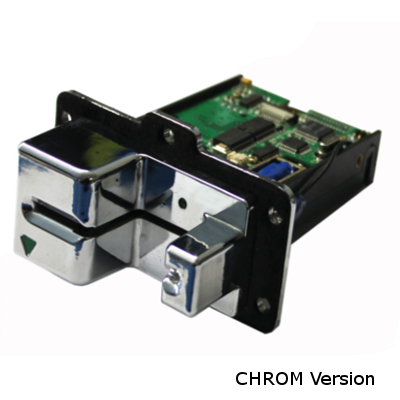

- With plastic or metal bezel.
- Optional with SAM slot.

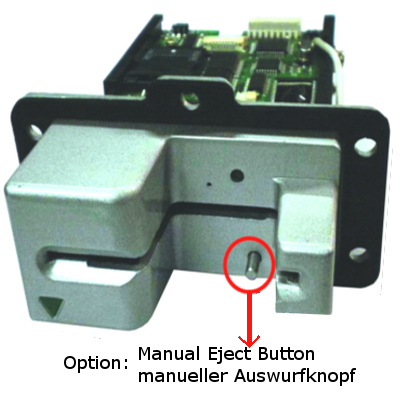

- With auto card lock and auto eject.
- Availalbe with the interfaces RS-232, TTL or USB.
| Description | Note | |
|---|---|---|
| Model/Typ | KYT-7300 card reader | |
| Magnetic cards | ISO 7811, 3 tracks | |
| Chip cards | ISO 7816, landing contacts | |
| RFID cards | ISO 14443, Mifare or comp. | |
| Card size | ISO 7810, 85,725 x 53,975 mm | |
| SAM-Slot | optional | |
| Card lock function | Standard with
optional without |
Solenoid |
| Interface | RS-232, TTL or USB | |
| Dimensions | 60 x 107 x 26,6 mm | |
| Bezel | Metall or plastik | |
| Power consumption | 5V DC – 12V DC | |
