SCR-35 Card reader for magnetic and chip cards
SCR-35 Card reader
The SCR-35 Card reader for magnetic and chip cards. This insertion card reader is available in different versions as build-in or stand-alone. The various configuration options makes this reader suitable for many applications. This model is successfully in the market since many years in the gaming and casiono industry.

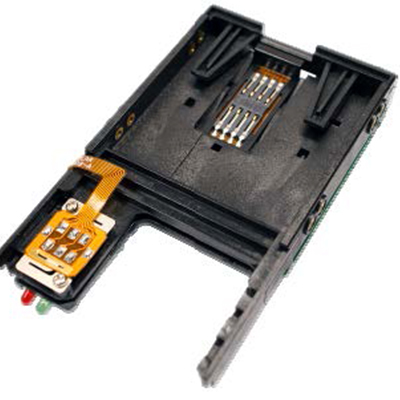

SCR-35 Modul Version
Plese see the product key for configuration options:
| Key | Description | |
|---|---|---|
| Series | SCR-35-M | |
| Modul | M | |
| Smart Card | S | |
| Memory Card | M | |
| Magnetic Card | 33 | |
| Interface R | R | RS232 |
| Interface U | U | USB CCID, USB HID, USB Direct IO |
| Product key: | Example | SCR 35 M S M 33 U |

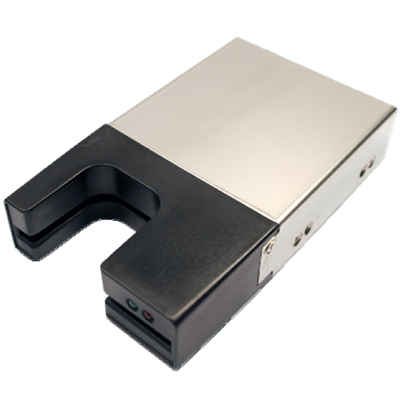

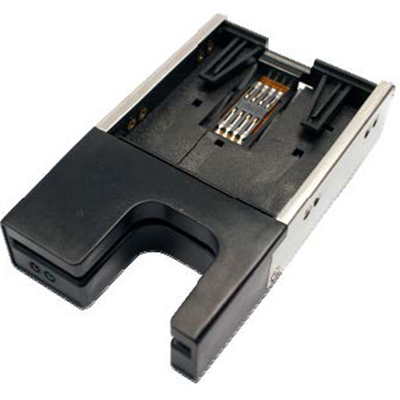

SCR Internal Version
Plese see the product key for configuration options:
| Key | Description | |
|---|---|---|
| Series | SCR-35-I | |
| Modul | I | |
| Smart Card | S | |
| Memory Card | M | |
| Magnetic Card | 33 | |
| Interface R | R | RS232 |
| Interface U | U | USB CCID, USB HID, USB Direct IO |
| Product key: | Example | SCR 35 I S M 33 U |

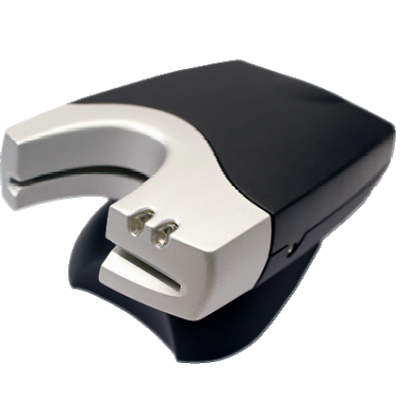

SCR Standalone Version
Plese see the product key for configuration options:
| Key | Description | |
|---|---|---|
| Series | SCR-35-S | |
| Modul | S | |
| Smart Card | S | |
| Memory Card | M | |
| Magnetic Card | 33 | |
| Interface R | R | RS232 |
| Interface U | U | USB CCID, USB HID, USB Direct IO |
| Product key | Example | SCR 35 S S M 33 U |

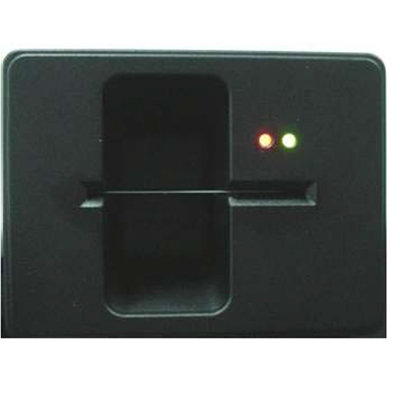

SCR Flash Mount Verison
Plese see the product key for configuration options:
| Key | Description | |
|---|---|---|
| Series | SCR-35-F | |
| Modul | F | |
| Smart Card | S | |
| Memory Card | M | |
| Magnetic Card | 33 | |
| Interface R | R | RS232 |
| Interface U | U | USB CCID, USB HID, USB Direct IO |
| Product key: | Example | SCR 35 F S M 33 U |

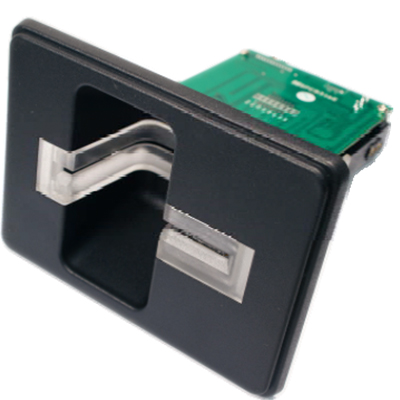

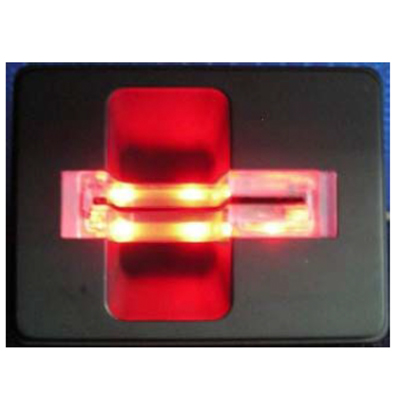

SCR Translucent
Plese see the product key for configuration options:
| Key | Description | |
|---|---|---|
| Series | SCR-35-T | |
| Modul | T | |
| Smart Card | S | |
| Memory Card | M | |
| Magnetic Card | 33 | |
| Interface R | R | RS232 |
| Interface U | U | USB CCID, USB HID, USB Direct IO |
| Product key: | Example | SCR 35 T S M 33 U |
- SCR-35 hybrid card reader for magnetic, smart and memory chip cards.
- With 32-bit Processor for High Performance.
- With magnetic card reading function while removal.
- With landing contacts for chip reading.
- With on-board flash for easy firmware update.
- Card insertion responsed by LED.
- Available with the interfaces USB,TTL & RS232.
- Compliant with CCID Standard, ISO 7811, ISO 7816, EMV2000L1.
- Baudrate can be adjusted.
- Plug & Play Installation for Microsoft Windows.
- With driver, demo programm and Libraries for Microsoft Windows.
- This reader is CE & FCC certified.
| Magnetic card ISO 7810, 7811 | Track 1 | Track 2 | Track 3 |
|---|---|---|---|
| Recording density | 210 BPI | 75 BPI | 210 BPI |
| Capacity | 79 characters
(7bit code) |
40 characters
(5 bit code) |
107 characters
(5 bit code) |
| Start/End Code | %/? | ;/? | ;/? |
| JISX6302 Typ 1 | |||
| Recording density | 210 BPI | 75 BPI | 210 BPI |
| Capacity | 79 characters
(7 bit code) |
40 characters
(5 bit code) |
107 characters
(5 bit code) |
| Start/End Code | %/? | %/? | %/? |
| JISX6302 Typ 2 | |||
| Recording density | 210 BPI | 210 BPI | 210 BPI |
| Capacity | 72 characters
(8 bit code) |
72 characters
(8 bit code) |
72 characters
(8 bit code) |
| Start/End Code | DEL/DEL | DEL/DEL | DEL/DEL |
| Chip cards | ISO 7816 T=0/T=1,
EMV 2000 Level 1 SLE 4442/4443, SLE 4428/4418, AT24CXX |
||
| Interfaces | RS232 (9600 n 8 1 )
USB 1.1, 2.0 (CCID, HID, VCOM, Direkt IO) |
||
| Life time magnetic head
IC contacts, mechanic |
min. 300.000 contacts | ||
| Operation temperature | -10°C – 50°C | ||
| Driver, Demo Software | Microsoft Windows 32 & 64 bit |
